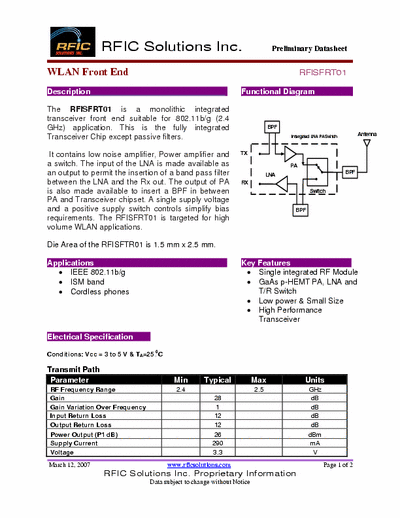

Rficsolutions.Inc RFISFRT01 The RFISFRT01 is a monolithic integrated
transceiver front end suitable for 802.11b/g (2.4
GHz) application. This is the fully integrated
Transceiver Chip except passive filters.
It contains low noise amplifier, Power amplifier and a switch. The input of the LNA is made available as an output to permit the insertion of a band pass filter
between the LNA and the Rx out. The output of PA
is also made available to insert a BPF in between
PA and Transceiver chipset. A single supply voltage
and a positive supply switch controls simplify bias
requirements. The RFISFRT01 is targeted for high
volume WLAN applications.
Die Area of the RFISFTR01 is 1.5 mm x 2.5 mm.
